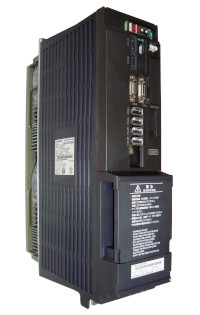

Reparatur Mitsubishi Spindel-Controller MDS-D-SP und MDS-DH-SP

Alarm 11 - Axis selection error
Alarm 12 - Memory error 1
Alarm 13 - Software processing error 1
Alarm 16 - Initial magnetic pole position detection error
Alarm 17 - A/D converter error
Alarm 18 - Main side detector: Initial communication error
Alarm 19 - Detector communication error in synchronous control
Alarm 1A - Sub side detector: Initial communication error
Alarm 1B - Sub side detector: Error 1
Alarm 1C - Sub side detector: Error 2
Alarm 1D - Sub side detector: Error 3
Alarm 1E - Sub side detector: Error 4
Alarm 1F - Sub side detector: Communication error
Alarm 21 - Sub side detector no signal 2
Alarm 22 - Detector data error
Alarm 23 - Excessive speed error
Alarm 26 - Unused axis error
Alarm 27 - Sub side detector: Error 5
Alarm 28 - Sub side detector: Error 6
Alarm 29 - Sub side detector: Error 7
Alarm 2A - Sub side detector: Error 8
Alarm 2B - Main side detector: Error 1
Alarm 2C - Main side detector: Error 2
Alarm 2D - Main side detector: Error 3
Alarm 2E - Main side detector: Error 4
Alarm 2F - Main side detector: Communication error
Alarm 30 - Over regeneration
Alarm 31 - Overspeed
Alarm 34 - NC communication: CRC error
Alarm 35 - NC command error
Alarm 36 - NC communication: Communication error
Alarm 38 - NC communication: Protocol error 1
Alarm 39 - NC communication: Protocol error 2
Alarm 3C - Regeneration circuit error
Alarm 3D - Power supply voltage error at acceleration/deceleration
Alarm 3E - Magnetic pole position detection error
Alarm 41 - Feedback error 3
Alarm 42 - Feedback error 1
Alarm 43 - Feedback error 2
Alarm 48 - Main side detector: Error 5
Alarm 49 - Main side detector: Error 6
Alarm 4A - Main side detector: Error 7
Alarm 4B - Main side detector: Error 8
Alarm 4C - Current error at initial magnetic pole estimate
Alarm 4E - NC command mode error
Alarm 4F - Instantaneous power interrupt
Alarm 52 - Excessive error 1
Alarm 53 - Excessive error 2
Alarm 54 - Excessive error 3
Alarm 56 - Commanded speed error
Alarm 58 - Collision detection 1: G0
Alarm 59 - Collision detection 1: G1
Alarm 5A - Collision detection 2
Alarm 5B - Safety observation: Commanded speed monitoring error
Alarm 5D - Safety observation: Door state error
Alarm 5E - Safety observation: Speed feedback monitoring error
Alarm 5F - External contactor error
Alarm 60 bis 77 - Alarms from Power supply unit MDS-DH-CV
Alarm 80 - Main side detector cable error
Alarm 81 - Sub side detector cable error
Alarm 87 - Drivers communication error
Alarm 88 - Watchdog
Alarm 8A - Drivers communication data error 1
Alarm 8B - Drivers communication data error 2
Warning 96 - Scale feedback error
Warning 97 - Scale offset error
Warning 9B - Incremental detector/magnetic pole shift warning
Warning 9E - Absolute position detector: Revolution counter error
Warning 9F - Battery voltage drop
Warning A3 - Distance-coded reference check / initial setup warning
Warning A6 - Fan stop warning
Warning E0 - Overregeneration warning
Warning E1 - Overload warning
Warning E4 - Parameter warning
Warning E6 - Control axis detachment warning
Warning E7 - NC emergency stop
Warning E8 bis EF - Warnings from Power supply unit MDS-DH-CV
